Customized hydraulic cylinder for steel mill
| Lugar de origen | Changzhou, China |
|---|---|
| Nombre de la marca | CZHydraulic |
| Model Number | QPPY |
| Cantidad de orden mínima | 1 pieza/piezas |
| Detalles de empaquetado | Paquete de exportación estándar |
| Tiempo de entrega | 15~60 días depende del tipo de productos |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 2400 toneladas/toneladas por año |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
En WeChat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre de la marca | hydraulic cylinder | Lugar de origen | Jiangsu |
|---|---|---|---|
| Diámetro del eje | Como orden | Material del cuerpo | Acero |
| Fuerza | Hidráulico | Estructura | Cilindro de pistón |
| Resaltar | customized hydraulic cylinder steel mill,large bore hydraulic cylinder,hydraulic cylinder with warranty |
||
Descripción de producto

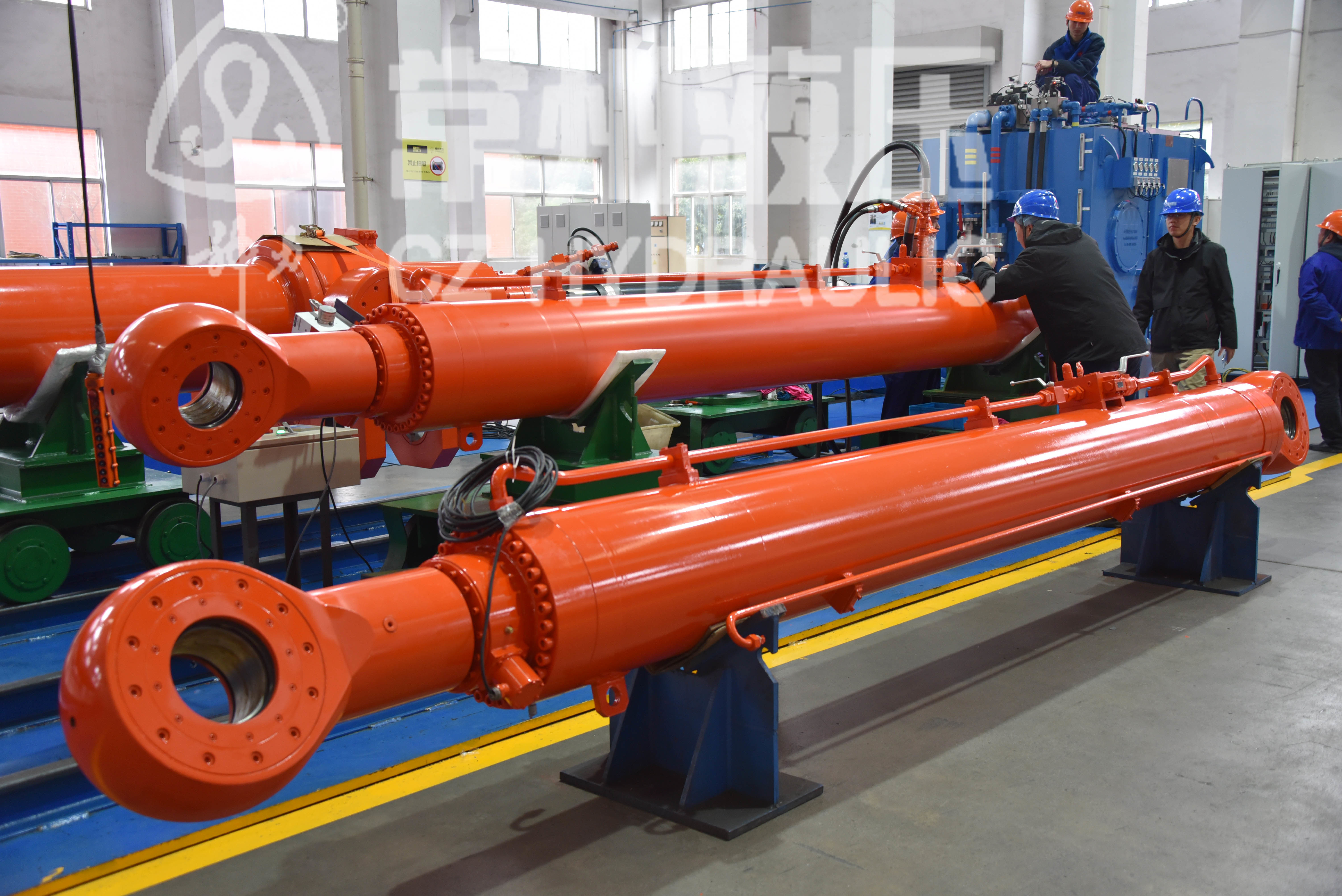

Customized Hydraulic Cylinder for Steel Mill
Product Specifications
| Specification | Details |
|---|---|
| Application Industry | Water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities |
| Stroke Length | 50 to 16,000mm |
| Tube Inner Diameter | 80 to 1,200mm |
| Piston Rod Diameter | 45 to 600mm |
| Plate | Ni/Cr/ceramic |
| Working Pressure | 70 to 700 bars |
| Bearing | LONGXI (China) or SKF |
| Seal Type | Common standard or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany) |
| Valves | Parker/Rexroth/Atos/Hydcom |
| Certification | DNV, ABS, Lloyds, BV, SGS, GL, and CCS |
| Material | Carbon, alloy, stainless steel |
Manufacturing Process: Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced.
Product Images
Company Overview
Changzhou Hydraulic Complete Equipment Co., Ltd. is located in No. 1 Xinhui Road, Wujin National High-Tech Industrial Zone, Jiangsu Province. The company was established in 1990 and has more than 35 years of experience in producing complete sets of hydraulic hoist equipment, hydraulic cylinders and hydraulic control systems.
The company covers an area of 93,333 m² where the building area is 68,000 m². The company has strong technical force and advanced technology.
Product Range:
- Complete set of hydraulic hoist equipment
- Applied industrial hydraulic cylinder and its control system
- Servomotor
- Thermal spraying
- Surface treatment
These products cover four major fields of water conservancy and hydropower, application industry, marine engineering ships, and national defense research. All kinds of products have reliable quality and won a good reputation.
